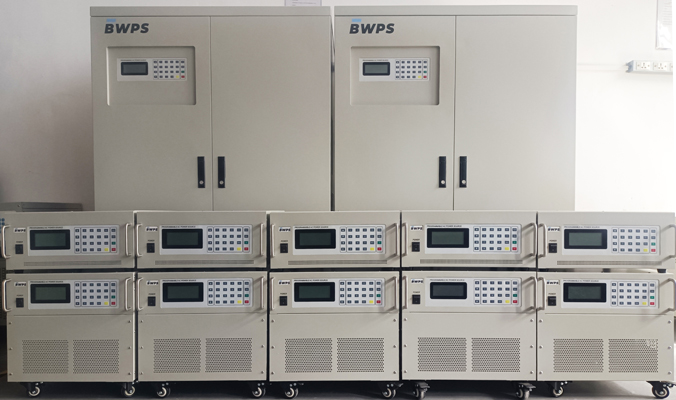

Frequency-Converter-AC-Power-Supply50hz

Frequency Converter-AC Power Supply

POWER PRODUCTS鲸SOLID STATE FREQUENCY CONVERTER AC POWER SUPPLY

BWFCM Series - 0.5kVA - 2000kVA

blue whale power good

Main Features

Double conversion

SPWM and IGBT

Low harmonic distortion

Pure sine wave output

LED display, key buttons

Complete protections

Fixed and variable selectable

Single & triple phase available

Isolated output transformer

For Applications

Home appliance

Aviation and avionics

Electrical equipment

Marine electronics

Laboratory and test

Motors and pumps

Blue Whale BWFCM series solid state / static frequency converter is one of the most popular AC power supplies designed to change AC power at 50Hz to 60Hz or 60Hz to 50Hz, or convert conventional 50/60 Herts to 400Hz or convert 50/60Hz to 16.67Hz/25Hz/100Hz.                                            BWFCM series static converters adopt built-in rectifier to convert incoming AC power into DC and then invert the DC into desired frequency and voltage thru IGBT and built-in isolation transformer.                                                                                                                                                                            Blue Whale BWFCM series features in many advantages, making them ideal not only for export product testing or operation of imported equipment, but also for applications such as the testing of military/avionics equipment or for the operation of 400 hertz electronics that are onboard an aircraft or a military vessel.

Technical Specification

Capacity

Single Phase output units:0.5kVA,1kVA,3kVA,5kVA,10kVA,15kVA,20kVA,30kVA,50kVA,60kVA,75kVA,100kVA,150kVA,200kVA(Select One specific kVA)
3-Phase output units:1kVA,3kVA,6kVA,9kVA,15kVA,20kVA,30kVA,45kVA,60kVA,100kVA,150kVA,200kVA,300kVA,400kVA,500kVA~2000kVA (Select One kVA)

Input

Single phase (Select One Individual Voltage)

110Vac ±10%, 115Vac ±10%, 120Vac ±10%
127Vac ±10%, 220Vac ±10%, 230Vac ±10%

Three phase (Select One Individual Voltage)

115-127(L-N)/200-220V(L-L) ±10%,220-240(L-N)/380-415V(L-L) ±10%,3Phase4 Wire,440V(L-L) ±10%,480V(L-L) ±5%, 3Phase 3 Wire

Frequency

50Hz/60Hz ±5%,400Hz(Optional)

Power factor

≥ 0.8 (standard type)
≥ 0.9 (optional type, 12 pulse)

Output

Single phase (Select One Individual Voltage)

Fixed:  110V, 115v, 120V, 127V, 220V, 230V, 240V

Adjustable:  0~150Vac/0~300Vac

Three phase (Select One Individual Voltage)

Fixed:  115/200V(L-N/L-L), 120/208V(L-N/L-L), 127/220V(L-N/L-L), 220/380V(L-N/L-L), 230/400V(L-N/L-L), 240/415V(L-N/L-L), 254/440V(L-N/L-L), 277/480V(L-N/L-L),3Phase 4 Wire

Adjustable:  0~260V(L-N)/0~520V(L-L),3Phase 4 Wire

Frequency

Fixed:  50Hz ,60Hz, 100, 200Hz, 45-200Hz(adjustable)

Optional:400Hz/40Hz~500Hz (adjustable),16.67Hz, 25Hz, 400-1000Hz

Voltage Accuracy

≤ ±1%  FS (Full Scale)

Frequency Accuracy

≤ ±0.1%  FS (Full Scale)

Total harmonic distortion

THD ≤ 3% @ linear load, pure sine wave output

Crest

3:1

Overload

100% for continuous,101-200% shut down in 200mS

Interface

Non for standard units,RS232C/RS485/GPIB(Optional)

Protection

over current,over load,ovevoltage,over heat,short circuit,alarm and indicators

Enclosure IP

IP22 (Standard) , IP32, IP54(Optional)Or as per requirement

LED/LCD display

  • Digital frequency meter
  • Digital voltage meter
  • Digital current meter
  • Digital power/PF meter

Working condition

Temperature

  • Operation: -10℃~55℃
  • Ambient: -10℃~45℃

Noise

≤ 65dB at 1 meter

Humidity

10~90% non-condensing

Altitude

≤ 1800m

Reliability and Efficiency

Mean Time Between Failure(MTBF)

50,000H

Mean Time To Restore(MTTR)

< 30 min

Overall efficiency

≥ 85%

Standards

GB50054-95,GB 50150-1991,GB 50150-2006,GB 50171-1992,EN55032,EN55035

GB/T 16935.5-2008,GB/T16935.4-2011,EN IEC61000-3-2,EN 6100-3-3

For more details,please feel free to contact us,thank you!

BWPS Reserves the right to change or modify product design,construction,specification or material without prior notice and without incurring any obligation.
